1280×1024 12μm High-Definition Network Thermal Camera Core

ZV-LSV000H | The New Standard for Clarity: 1280 HD Resolution with Edge AI & Multi-Interface Connectivity.

1.3MP High-Definition Thermal Module for Border & Industrial Integration

Elevate your surveillance capabilities with the ZV-LSV000H, Zanvision's flagship high-definition thermal core. Featuring a massive 1280×1024 12μm VOx detector, it delivers four times the pixel count of standard VGA modules, enabling ultra-long-range detection and precise target identification.

Designed for seamless integration, the ZV-LSV000H supports dual-stream output (Network + HDMI) and comes embedded with advanced AI analytics for fire point detection, intrusion, and vehicle tracking. Whether for border security, critical infrastructure, or industrial inspection, this module offers the clarity and intelligence your system demands.

Specifications

Camera
Detector type	Uncooled VOx Microbolometer
Effective Pixels	1280 × 1024
Pixel Pitch	12μm
Spectral Band	8 ～ 14μm
NETD	≤35 mK @F1.0, 300K
Network
Video Compression	H.265 / H.264
Protocols	ONVIF (PROFILE S, PROFILE G), SDK, TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6
Smart Detection	Tripwire, Intrusion, Loitering, etc.
Intelligent Detection	Fire point detection, Detection, classification and tracking of humans/vehicles/vessel.
Max. Resolution	30/25fps (1920 × 1080)
Image Settings	Saturation, Brightness, Contrast, Sharpness, etc.
Digital Zoom	4×
Pseudo Colours	10 Modes Available
Image Stabilization	Electronic Image Stabilisation (EIS)
Image Enhancement	Support
Image Filtering	Support
Dead Pixel Correction	Support
Noise Reduction	Support
Mirror	Support
Interface
Ethernet	100M Network Port
Digital	HDMI / BT.1120 (Optional)
Serial Port	1 channel TTL 3.0V, 1 channel RS485
Functional Interface	Alarm (1 in / 1 out), audio (1 in / 1 out), USB
Storage	Micro SD / SDHC / SDXC card (Up to 512G), NAS (NFS, SMB / CIFS supported)
General
Operating Conditions	-30℃ ~ 60℃; Humidity ≤ 90% (non-condensing)
Power Supply	12V DC ± 10%
Power Consumption	Max: 5.0W
Dimensions (Unit: mm)	565658.3
Weight	235g

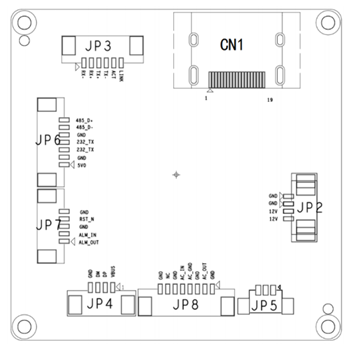

Interface

JP2 Power MX1.25mm_4P
No.	Pin Name
1	GND
2	GND
3	12V DC
4	12V DC

JP3 Ethernet MX1.25mm_6P
No.	Pin Name
1	TX-
2	TX+
3	RX+
4	RX-
5	LINK#
6	ACT#

JP4 USB2.0 MX1.25mm_4P
No.	Pin Name
1	5V_DC
2	USB_DP
3	USB_DM
4	GND

JP6 Serial Port MX1.25mm_7P
No.	Pin Name
1	VCC
2	GND
3	UART_RXD
4	UART_TXD
5	GND
6	RS-485-
7	RS-485+

JP7 Alarm MX1.25mm_5P
No.	Pin Name
1	ALM_OUT
2	ALM_IN
3	GND
4	SYS_RST_N
5	GND

JP8 Audio & Video MX1.25mm_8P
No.	Pin Name
1	GND
2	LINEOUT
3	GND
4	GND
5	LINEIN
6	GND
7	NC
8	GND
